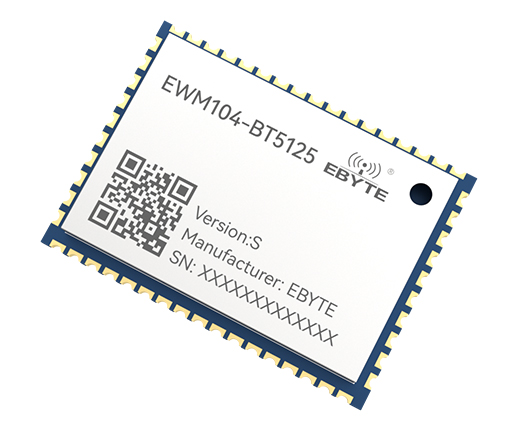

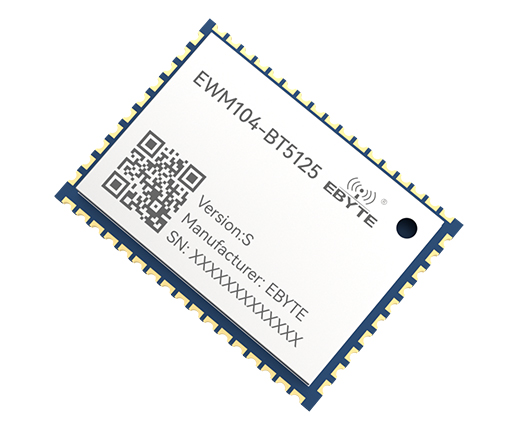

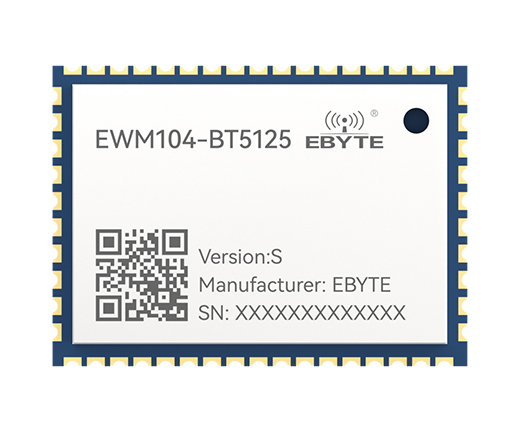

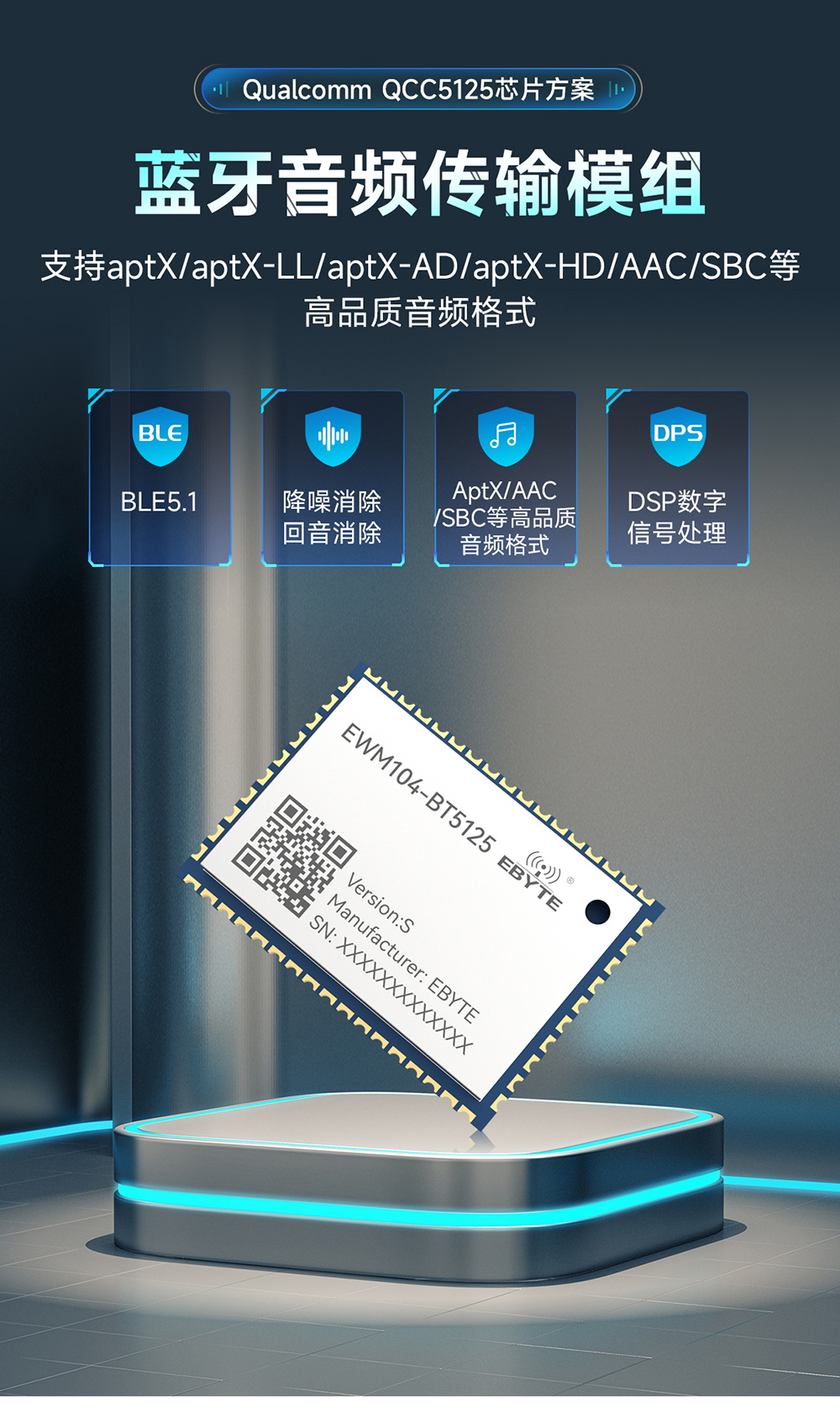

芯片方案：QCC5125
輸出接口：SPDIF
通信接口：USB
通信距離：120m
產品尺寸：13*18mm
產品重量：1.0g±0.1g

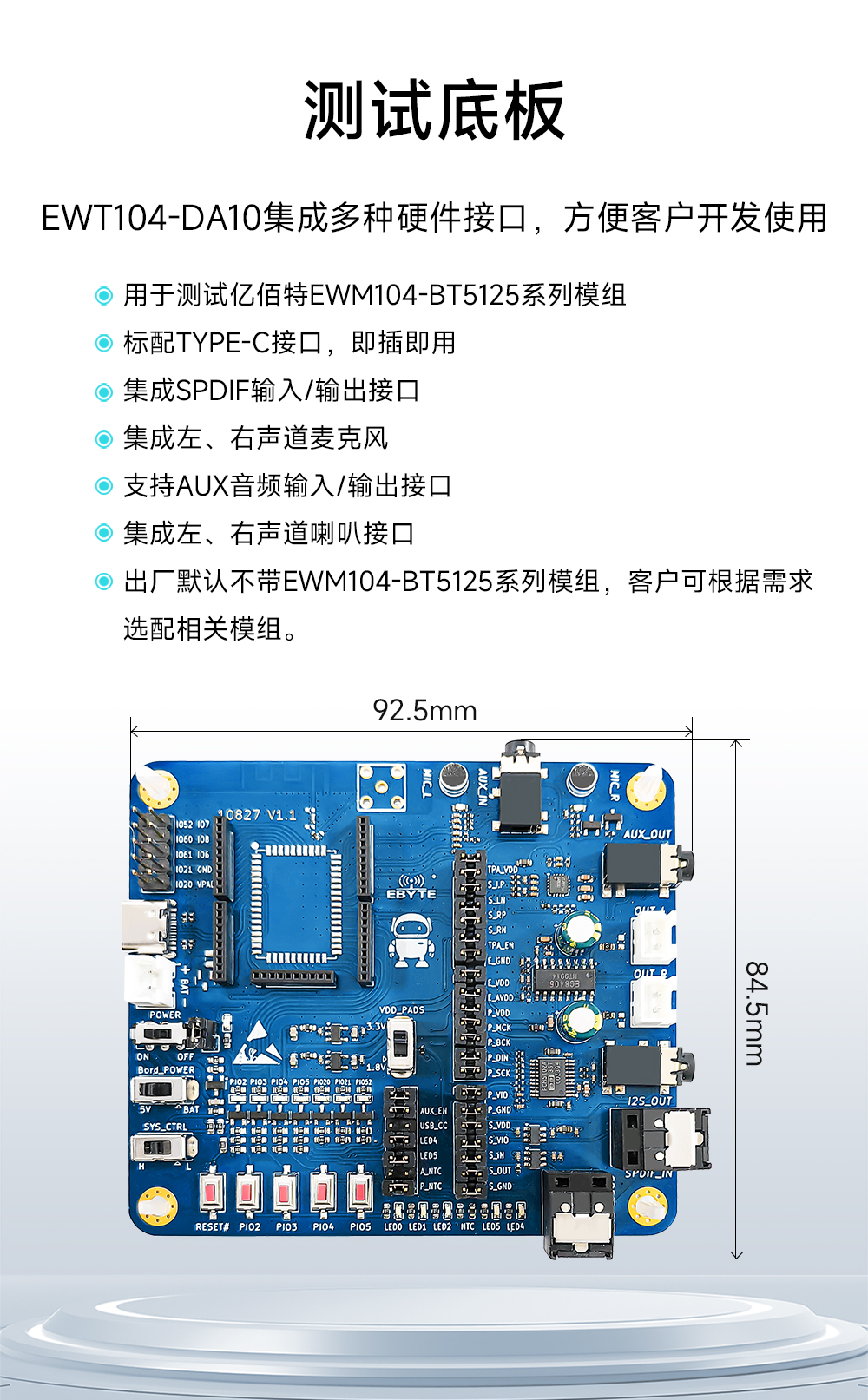

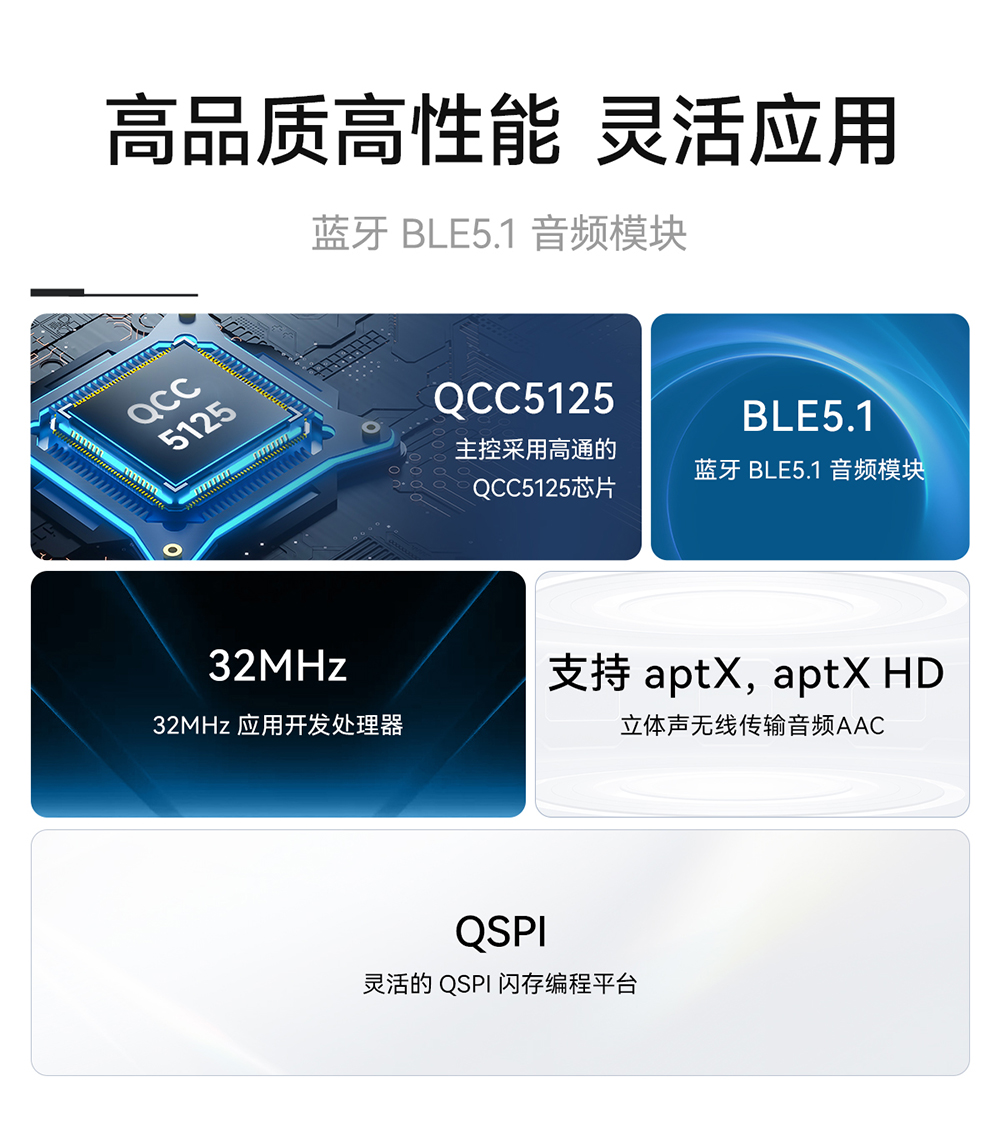

產品簡介：EWM104-BT5125(SPDIF)是億佰特推出的一款高性能、低功耗、高性價比的BLE5.1藍牙音頻模塊。主控采用高通的QCC5125芯片為模塊提供了一種具有片上藍牙、音頻和可編程應用處理器的系統。它包括高性能的模擬和數字音頻編解碼器、AB類和D類耳機驅動，先進的電源管理，靈活的接口協議和可編程輸入/輸出（PIO）。

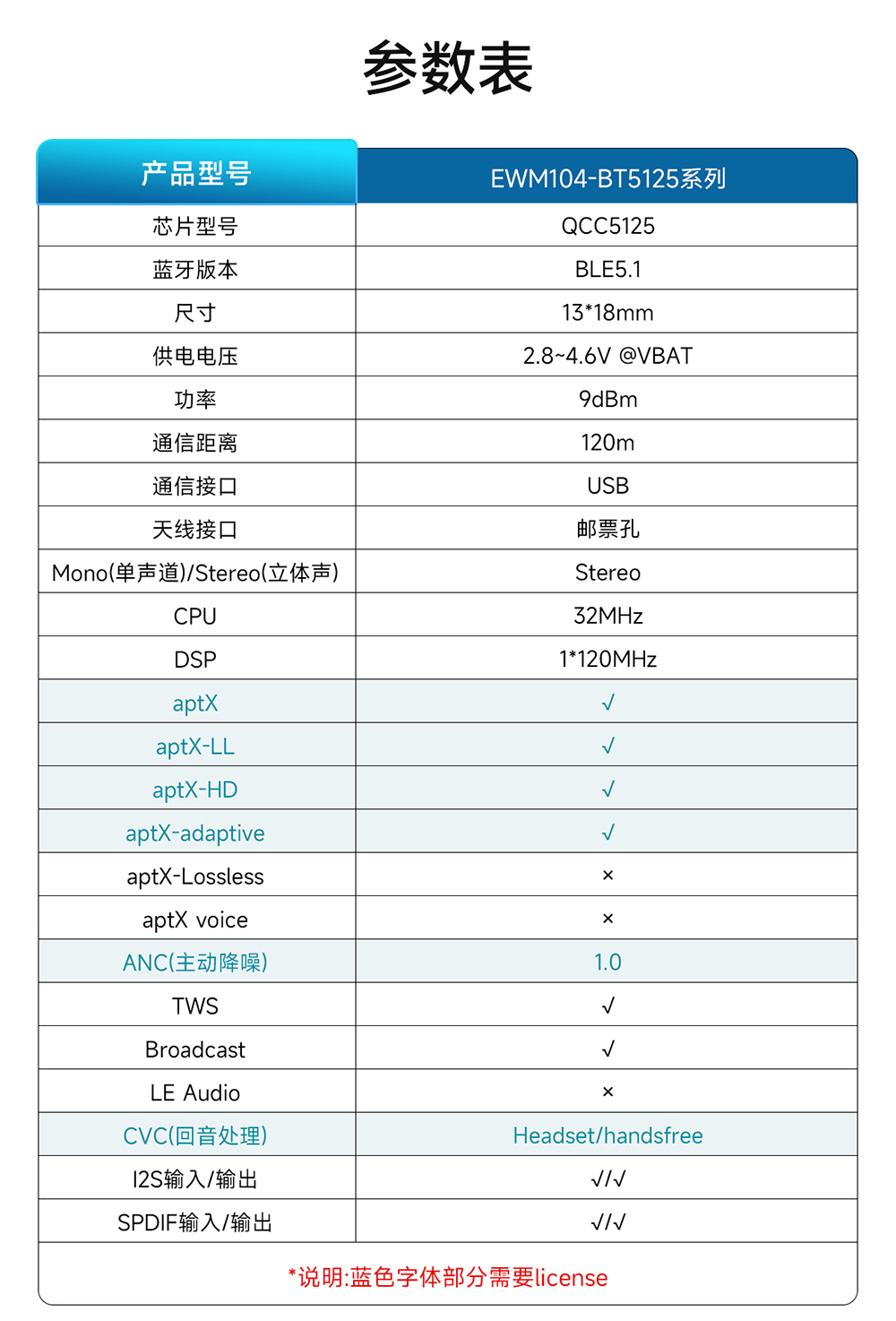

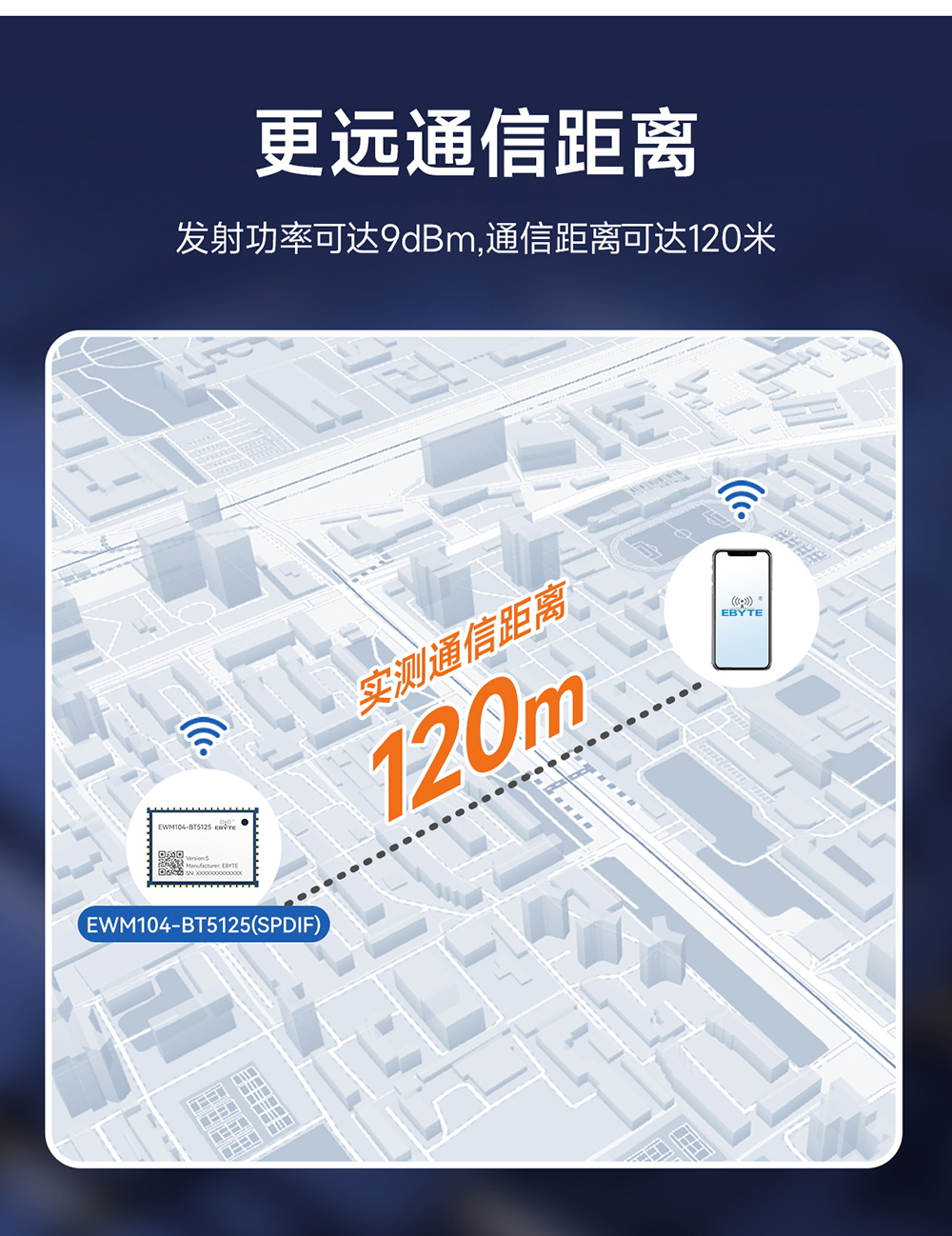

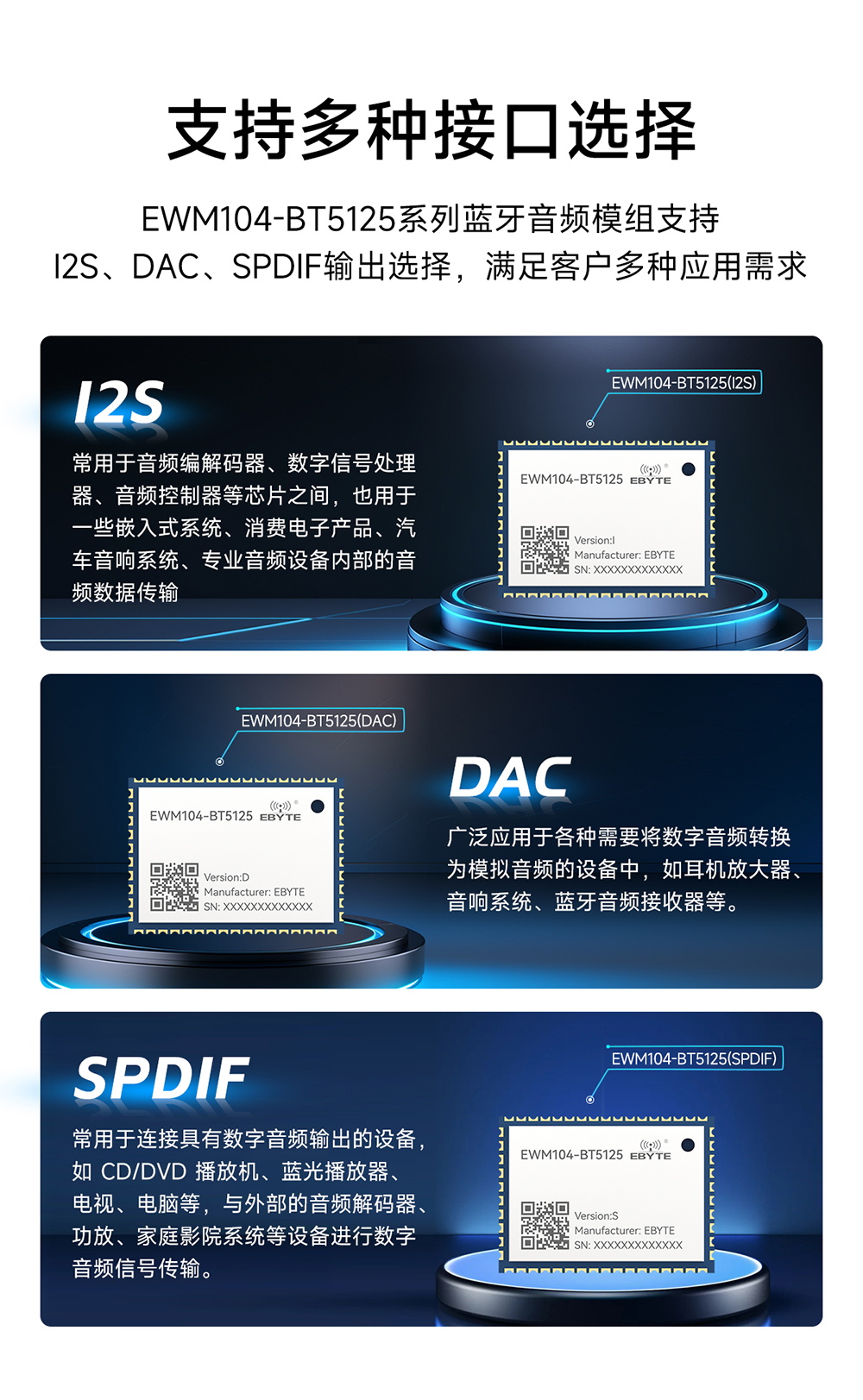

| 主要參數 | 性能 | 備注 | |||
| 最小值 | 典型值 | 最大值 | |||
| 工作電壓 VCHG(V) | 4.0 | 5 | 6.5 | 超過 6.5V 永久燒毀模塊 | |
| 工作電壓 VBAT(V) | 2.8 | 3.7 | 4.6 | 超過 4.6V 永久燒毀模塊 | |
| 通信電平（V） | 1.8 | 3.3 | 3.6 | 電平由 VDD_PADS1 和 VDD_PADS3_7 電平?jīng)Q定 | |
| 工作溫度（℃） | -40 | 20 | 85 | 工業級設計 | |
| 工作頻段（MHz） | 2402 | - | 2480 | 支持藍牙協議標準頻段 | |
| 功耗 | 未連接電流(mA) | 2 | - | 25 | 藍牙處于可被發現狀態 |
| 連接未播放電流(mA) | 10 | - | 30 | 藍牙已連接但是未播放音樂 | |
| 音頻輸出狀態電流 | 10 | - | 35 | 藍牙已連接并且播放音樂 | |
| 關機電流(uA) | 1.5 | 僅 VBAT 供電時 | |||
| 最大發射功率(dBm) | - | 9 | 9 | ||
| 接收靈敏度(dBm) | - | -92.0 | - | BDR | |
| 主要參數 | 描述 | 備注 |
| 參考距離 | 120m | 晴朗空曠，天線高度 2m |
| 晶振頻率 | 32MHz | |
| 板載 Flash | 32M-bit | |
| 封裝方式 | 貼片式 | |
| EWM104-BT5125(DAC)輸出接口 | DAC | |
| EWM104-BT5125(I2S)輸出接口 | I2S | |
| EWM104-BT5125(SPDIF)輸出接口 | SPDIF | |
| 通信接口 | USB | |
| 接口方式 | 郵票孔 | 間距 1.00mm |

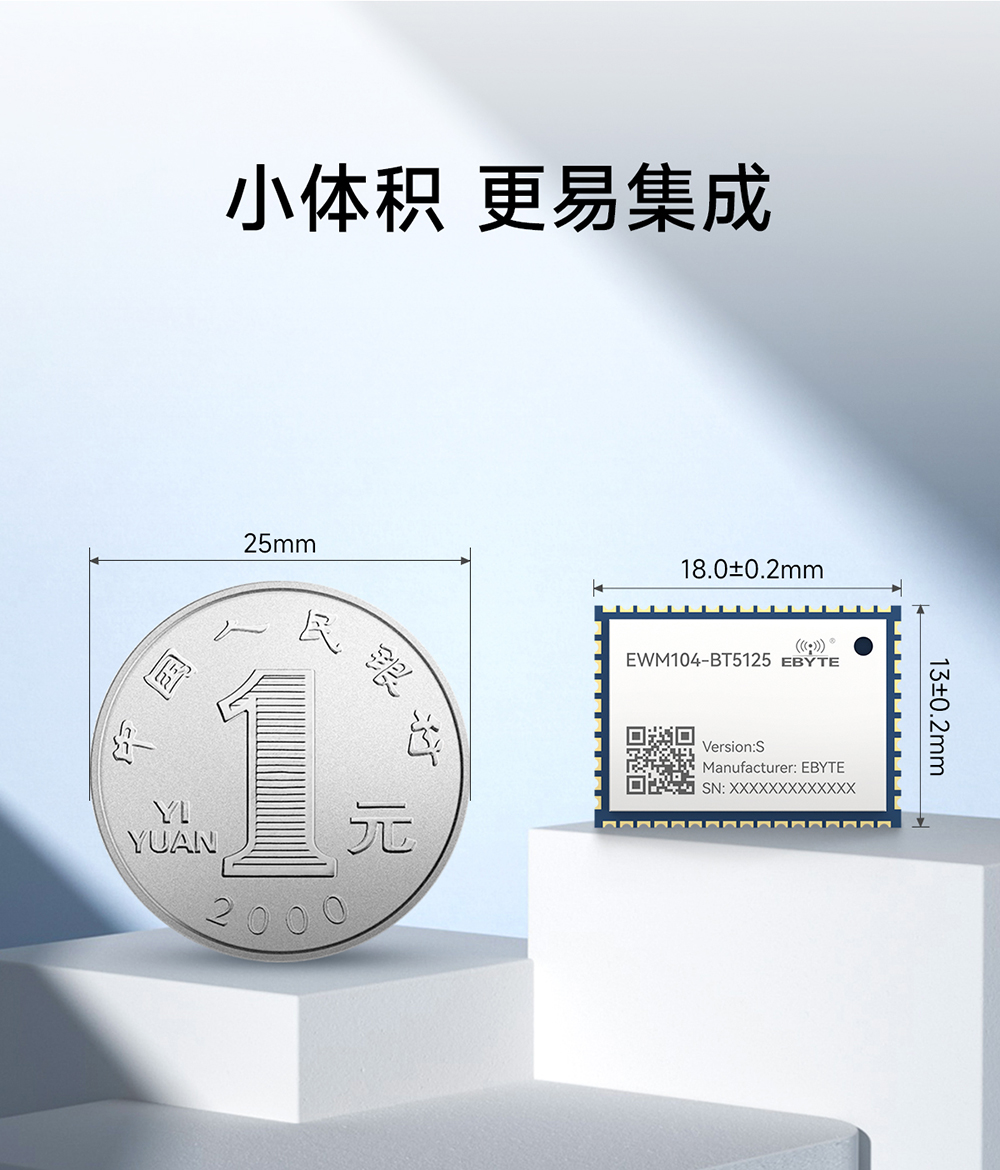

| 外形尺寸 | 13*18mm | ±0.2mm |
| 天線接口 | 郵票孔 | 等效阻抗約 50Ω |
| 重量 | 1.0g | ±0.1g |
| 引腳序號 | 引腳名稱 | 引腳方向 | 引腳用途 |
| 1 | NC | - | |
| 2 | SPDIF_IN/PIO[19] | I/O | SPDIF 光纖音頻數據輸入、PIO[19] |
| 3 | I2S_SDATA/SPDIF_OUT/PIO[18] | I/O | I2S 位數據輸出、SPDIF 光纖音頻數據輸出、PIO[18] |
| 4 | I2S_LRCK/PIO[17] | I/O | I2S 幀時鐘輸出、PIO[17] |
| 5 | I2S_SCK/PIO[16] | I/O | I2S 位時鐘輸出、PIO[16] |
| 6 | I2S_MCLK/PIO[15] | I/O | I2S 系統時鐘輸出、PIO[15] |
| 7 | VBAT_SENSE | Analog | 電池電壓檢測 |
| 8 | USB_DN | - | 全速 USB 接口 DN |
| 9 | USB_DP | - | 全速 USB 接口 DP |
| 10 | VCHG | P | 內部電源調節器和充電器電壓輸入,4.0~6.5V |
| 11 | VCHG_SENSE | Analog | 充電器輸入電壓檢測引腳，使用內部充電器或沒有充電器時，此引腳與VCHG引腳連接。 |
| 12 | CHG_EXT | Analog | 外部充電器晶體管電流控制。 |
| 13 | SYS_CTRL/PIO[0] | I | 通常連接到一個開關按鈕。當電池和/或充電器仍然有電源，但軟件已使設備處于關閉或休眠狀態時，通過按下按鈕來啟動設備。此外，還可作為正常操作中的 PIO[0]數字輸入。 |
| 14 | VBAT | P | 電池電源輸入，2.8~4.6V |
| 15 | GND | G | GND |
| 16 | AIO[0]/LED[0] | Analog/DO | 模擬/數字輸入、開漏 LED 輸出，LED 功能請參考后文 LED 功能指示圖 |
| 17 | AIO[1]/LED[1] | Analog/DO | 模擬/數字輸入、開漏 LED 輸出，LED 功能請參考后文 LED 功能指示圖 |
| 18 | AIO[2]/LED[2] | Analog/DO | 模擬/數字輸入、開漏 LED 輸出，LED 功能請參考后文 LED 功能指示圖 |
| 19 | AIO[4]/LED[4] | Analog/DO | 模擬/數字輸入、開漏 LED 輸出 |
| 20 | AIO[5]/LED[5] | Analog/DO | 模擬/數字輸入、開漏 LED 輸出 |
| 21 | GND | - | GND |
| 22 | 1V8 | P | 1.8V 電源輸出 |
| 23 | VDD_PADS1 | P | 1.8V/3.3V PIO 電壓輸入 |
| 24 | VDD_PADS3_7 | P | 1.8V/3.3V PIO 電壓輸入 |
| 25 | PIO[4] | I/O | 按鍵、PIO[4]，短按上一曲，長按藍牙連接，用戶可編程 |
| 26 | PIO[3] | I/O | 按鍵、PIO[3]，短按暫停播放，長按音量減小，用戶可編程 |
| 27 | PIO[6] | I/O | PIO[6] |
| 28 | PIO[5] | I/O | 按鍵、PIO[5]，短按下一曲，長按藍牙斷開，用戶可編程 |
| 29 | PIO[8] | I/O | PIO[8] |
| 30 | PIO[7] | I/O | PIO[7] |
| 31 | PIO[2] | I/O | 按鍵、PIO[2]，短按播放，長按音量增加，用戶可編程 |
| 32 | PIO[1] | I/O | 復位、PIO[1] |
| 33 | NC | - | |
| 34 | SPK-RN | Analog | DAC 音頻差分輸出右聲道負極 |
| 35 | SPK-RP | Analog | DAC 音頻差分輸出右聲道正極 |
| 36 | SPK-LN | Analog | DAC 音頻差分輸出左聲道負極 |
| 37 | SPK-LP | Analog | DAC 音頻差分輸出左聲道正極 |
| 38 | GND | GND | |
| 39 | MIC_BIAS | Analog | 麥克風偏置電壓輸出，1.5~2.1V |
| 40 | MIC2_N | Analog | 麥克風音頻差分輸入 2 負極 |
| 41 | MIC2_P | Analog | 麥克風音頻差分輸入 2 正極 |
| 42 | MIC1_N | Analog | 麥克風音頻差分輸入 1 負極 |
| 43 | MIC1_P | Analog | 麥克風音頻差分輸入 1 正極 |
| 44 | GND | - | GND |
| 45 | GND | - | GND |
| 46 | ANT | - | 藍牙天線接口 |
| 47 | GND | - | GND |
| 48 | PIO[54] | I/O | PIO[54] |
| 49 | PIO[53] | I/O | AUX 音頻輸入插入檢測、PIO[53] |
| 50 | PIO[52] | I/O | LED 指示燈、PIO[52],客戶可編程 |
| 51 | PIO[60] | I/O | PIO[60] |
| 52 | PIO[61] | I/O | PIO[61] |
| 53 | PIO[21] | I/O | LED 指示燈、PIO[21]，客戶可編程 |
| 54 | PIO[20] | I/O | 音頻功放使能、PIO[20] |
| 特別注意：以上引腳的功能描述僅針對于我司出廠時的默認程序功能，如需其它功能可聯系我司定制，自行開發引腳功能請參考QCC5125的官方用戶手冊。 | |||
